SPECIFICATIONS

Audio Format Support: MP3, WAV,FLAC,ape,WMA

Balanced Out: No

Battery Life: > 20 hours

Battery Specification: External Power

Bluetooth: Yes

Body Material: Plastic

Brand Name: kebidu

Choice: yes

Compatible Devices: Others

DSP: -

Designed for motor vehicle installation: No

Dimensions (WxHxD): 75mm*50mm

Display Size: None

External Memory: Yes

Function: Voice Recorder,FM Radio,Bluetooth,Build in Speaker

Have Speakers or not: Yes

High-concerned chemical: none

Model Number: Bluetooth 5.0 12V MP3 WMA WAV Decoder Board

Operation Mode: Touch Tone

Origin: Mainland China

Package: No

Screen: Yes

Signal Noise Ratio: ≥89dB

Storage Type: Flash Memory

Streaming Service Compatibility: Other

Style: Car MP3

Supports EBook Reading: No

Supports FM: Yes

Supports Recording Function: Yes

WIFI: No

There are 3 models optional, different model with different interface and appearance, please choose suitable model before purchase:

1）DC 12V ：With 6.5mm Microphone , Bluetooth 5.1, With Volume Control Button

2）DC 5V-12V ：With 6.5mm Microphone , Bluetooth 5.3

3）DC 9V-12V ：Without 6.5mm Microphone , Bluetooth 5.3

Note : the item without the Amplifier , it need to work with the Amplifier Board

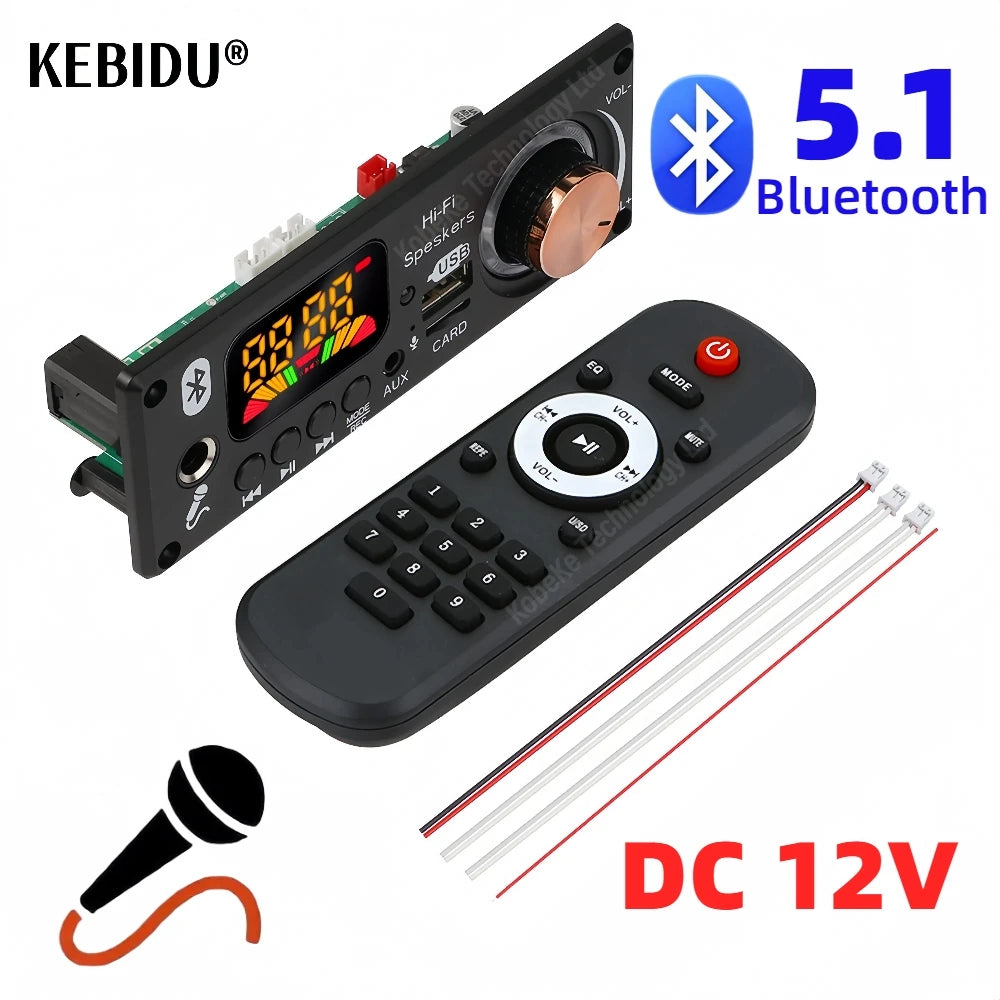

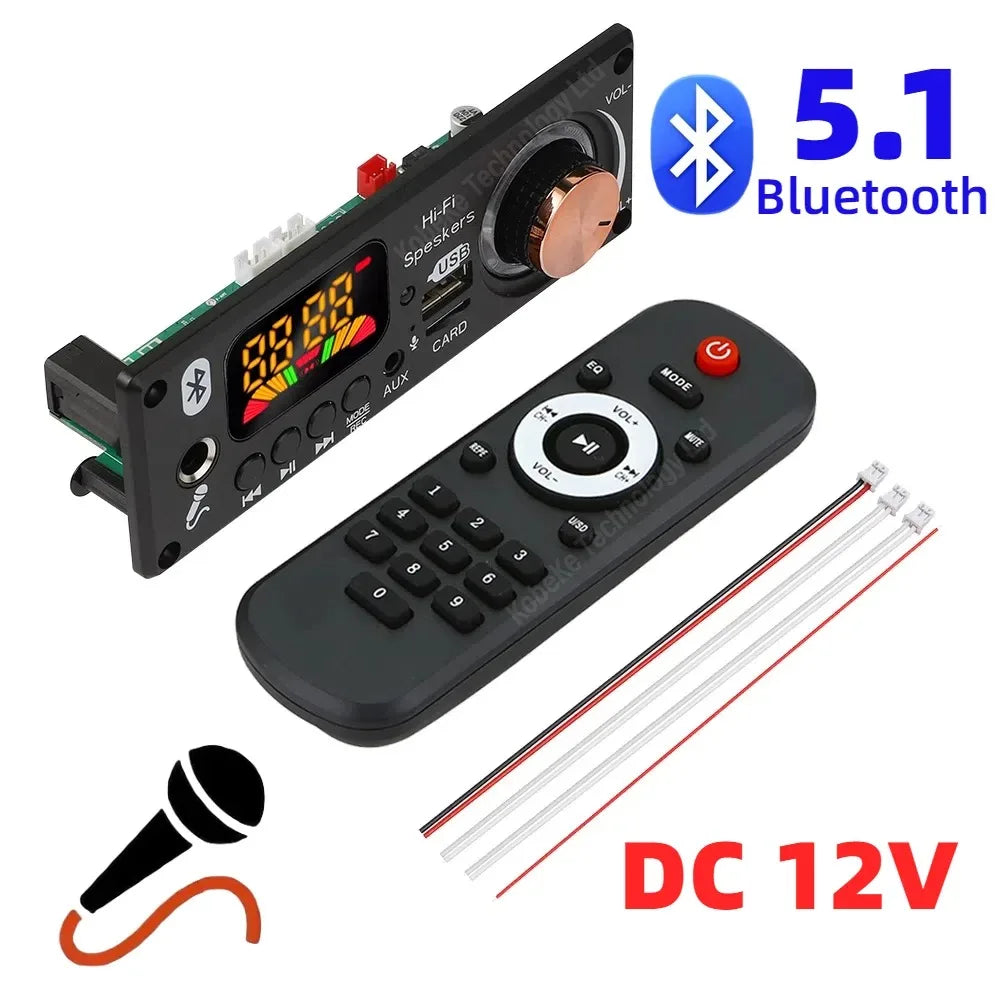

DC 12V

Description:
1. Bluetooth version 5.1

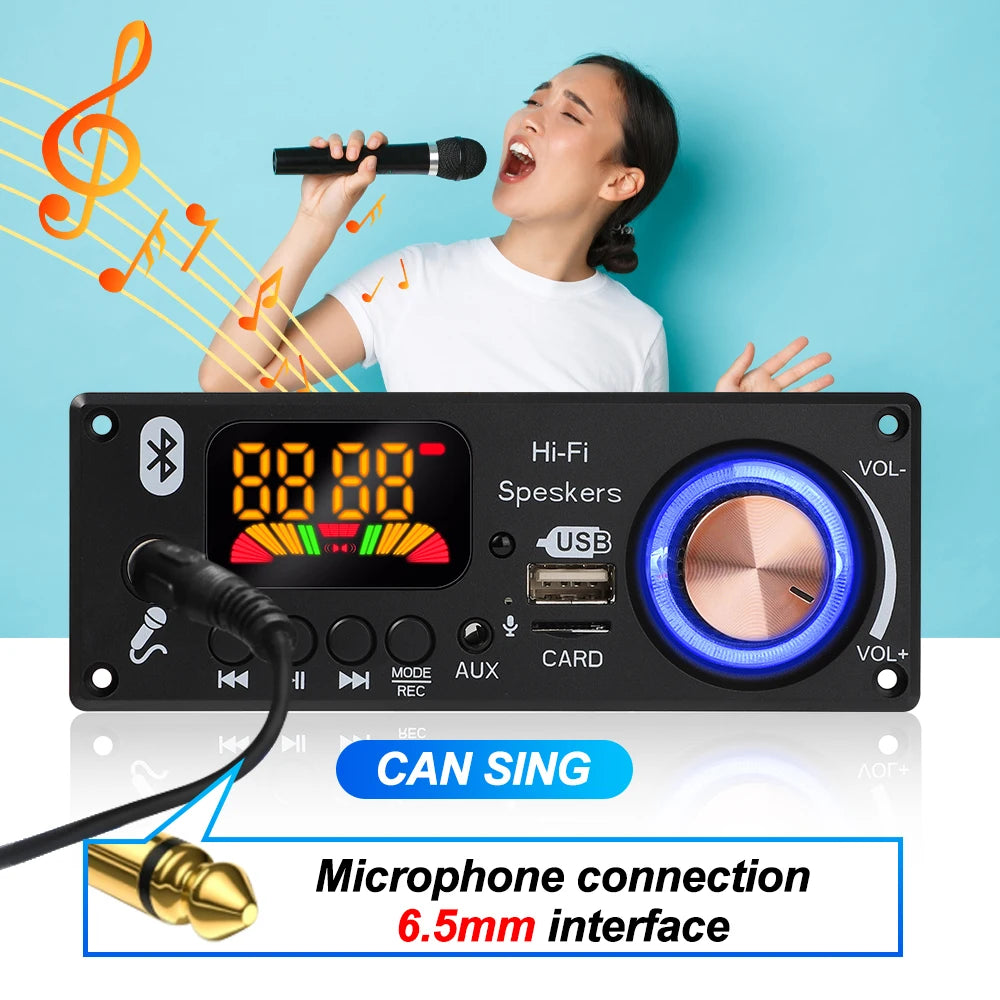

2.Support 6.5mm microphone functions

3. Support calling (long press the pause button to answer the call when there is a call)

4. Support recording. Recording only supports operation in TF mode or USB mode.

(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recorded file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as a U disk or TF card;)

5. Support power-off memory

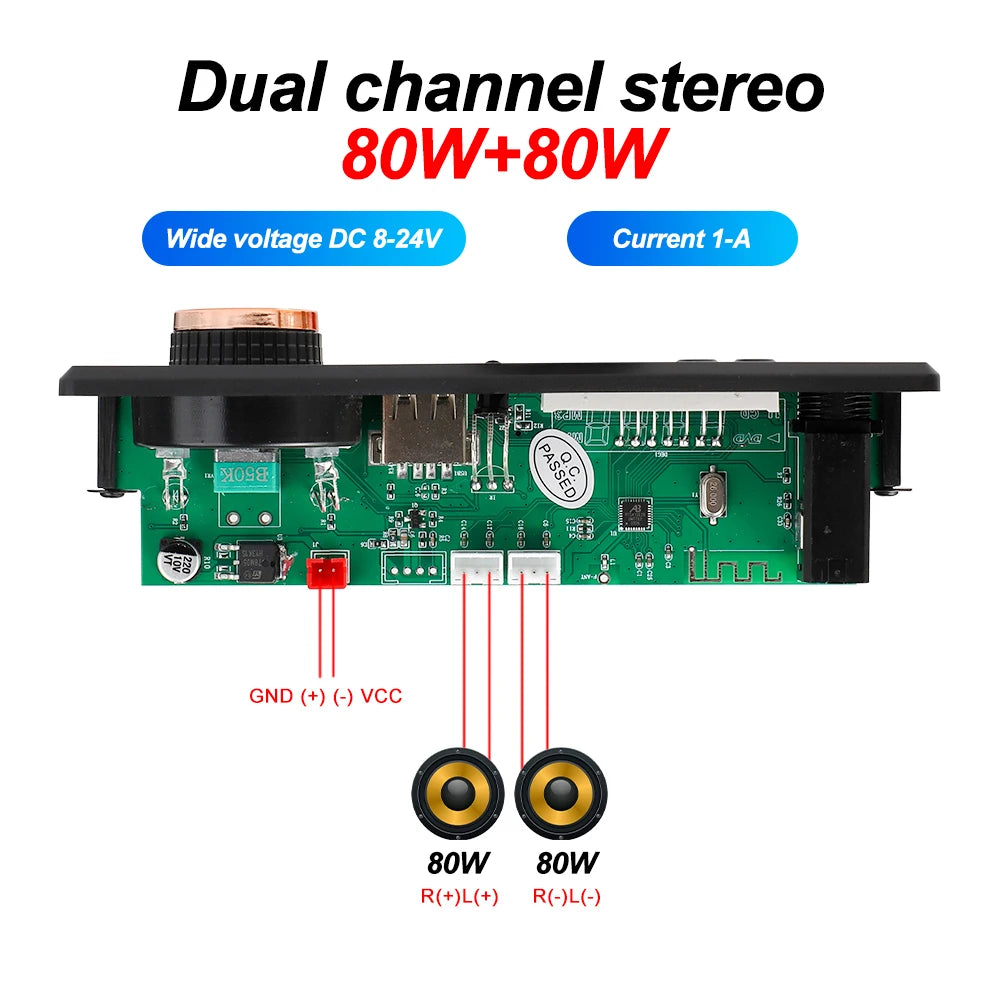

6. The power supply voltage supports between DC 12v, and the current is above 2A

7. Can be directly connected to speakers

8. Support song format MP3/WMA/WAV/APE/FLAC

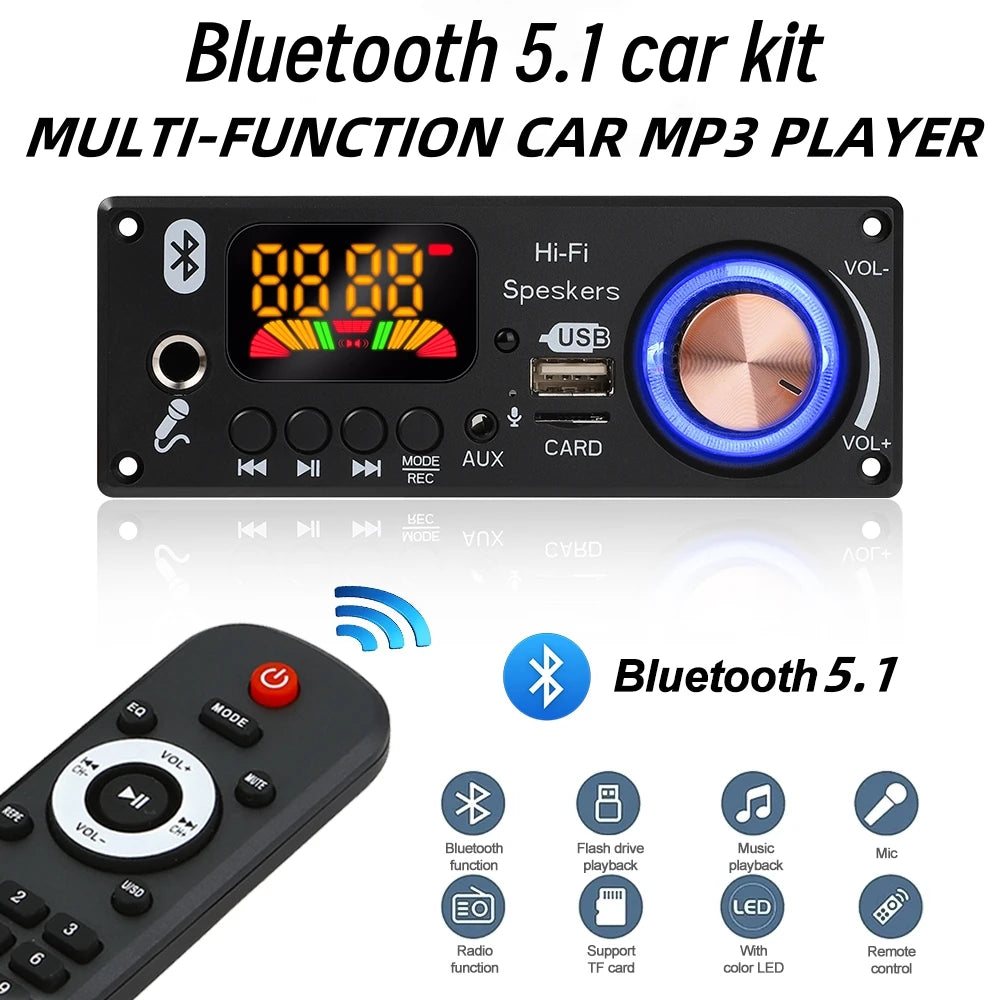

9. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/

10. Support folder selection to play. When USB or TF is playing, there is a folder in the device and there are songs in the folder. Press the previous button or the next button twice to select the folder to play songs, and the screen will display F001-F00? and so on, yes? A folder displays F00? .

DC 5V-12V

Bluetooth version is 5.3

Music format: MP3/WMA/WAV/FLAC/APE lossless format

Radio FM frequency: 87.5-107.5 MHZ

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 5V or 12V (optional)

About structure: Panel size: 75*50 MM, screw holes around the panel, the depth of the board is 18MM

Infrared receiver module

TF card slot: connect TF memory card (maximum support 32GB, not included);

LED: digital color screen display, showing red;

AUX interface: audio input interface

MIC: support microphone function

USB interface: connect U disk (maximum support 32GB, not included);

PREV/VOL-: short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;

NEXT/VOL+: short press is to select the next song; long press is to increase the volume;

MODE: Switch between USB/TF/FM/AUX/BLUETOOTH;

DC 9V-12V

Feature:

Input voltage: 9-12V

Dimensions: 106*25 mm

LED color screen: digital screen display, showing red

* Support USB(up to 32GB), SD(TF),AUX,FM

* Support bluetooth (after been paired with mobile phones can realize wireless music play)

Infrared receiving module

AUX: audio input interface

VOL-: Short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: Short press is the switch between pause and play; long press is the FM FM automatic station

VOL+: Short press is to select the next song; long press is to increase the volume

MODE: Switching of USB/TF/FM/LINE IN/BLUETOOTH
