SPECIFICATIONS

Accessory Type: Battery Accessories

Battery Included: no

Brand Name: diymore

Certification: CE

Charger included: N

Choice: yes

Electronic: no

High-concerned chemical: none

Item Type: Power Supply

Origin: Mainland China

Output Power: 50-150（include150）

PCBincluded: Yes

Use: others

Voltage range: No voltage

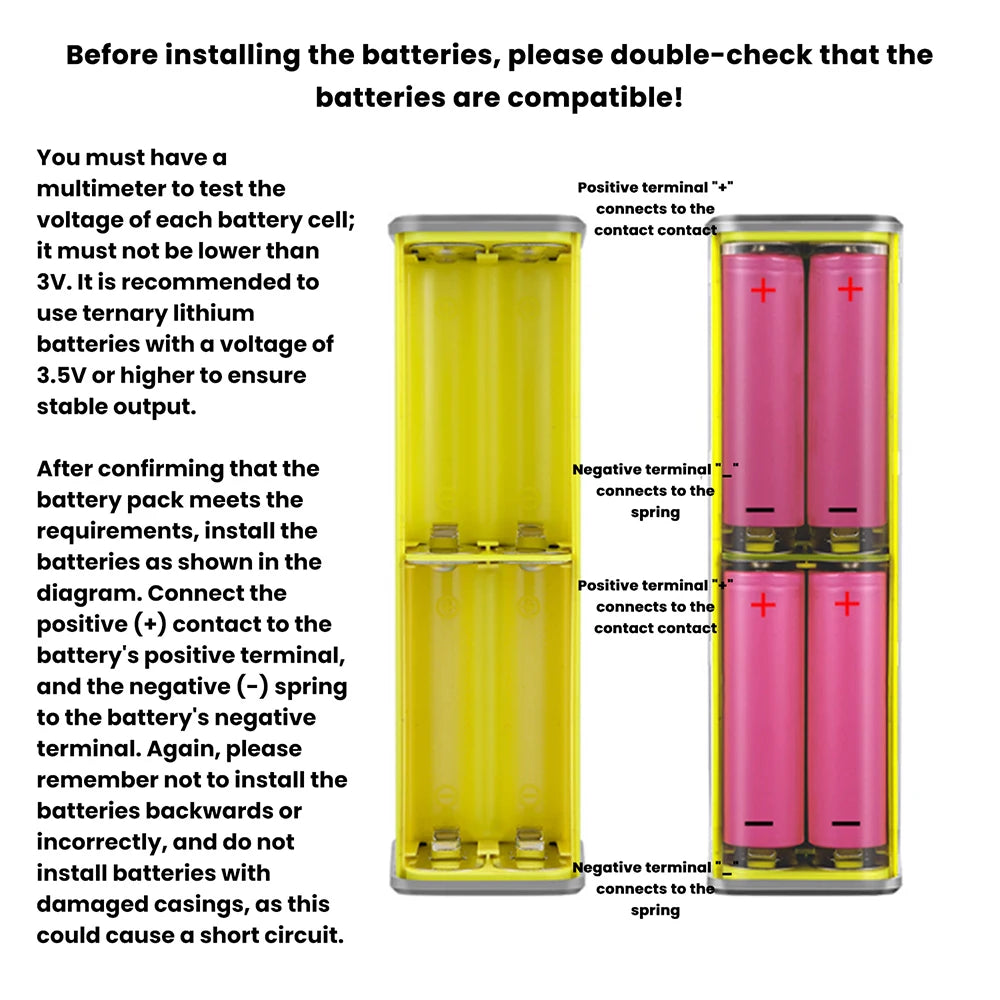

NOTE:First use requires charging and activation. The new device is in a power-off sleep state when it leaves the factory. After installing the matching battery, an external power source (data cable connected to a power bank/adapter) is needed to assist in power activation. Installing the battery alone cannot wake up the entire device, which is a product factory sleep protection setting and not a hardware failure.

Features
1. PD 65W high-power fast charging, compatible with multiple devices for efficient charging experience

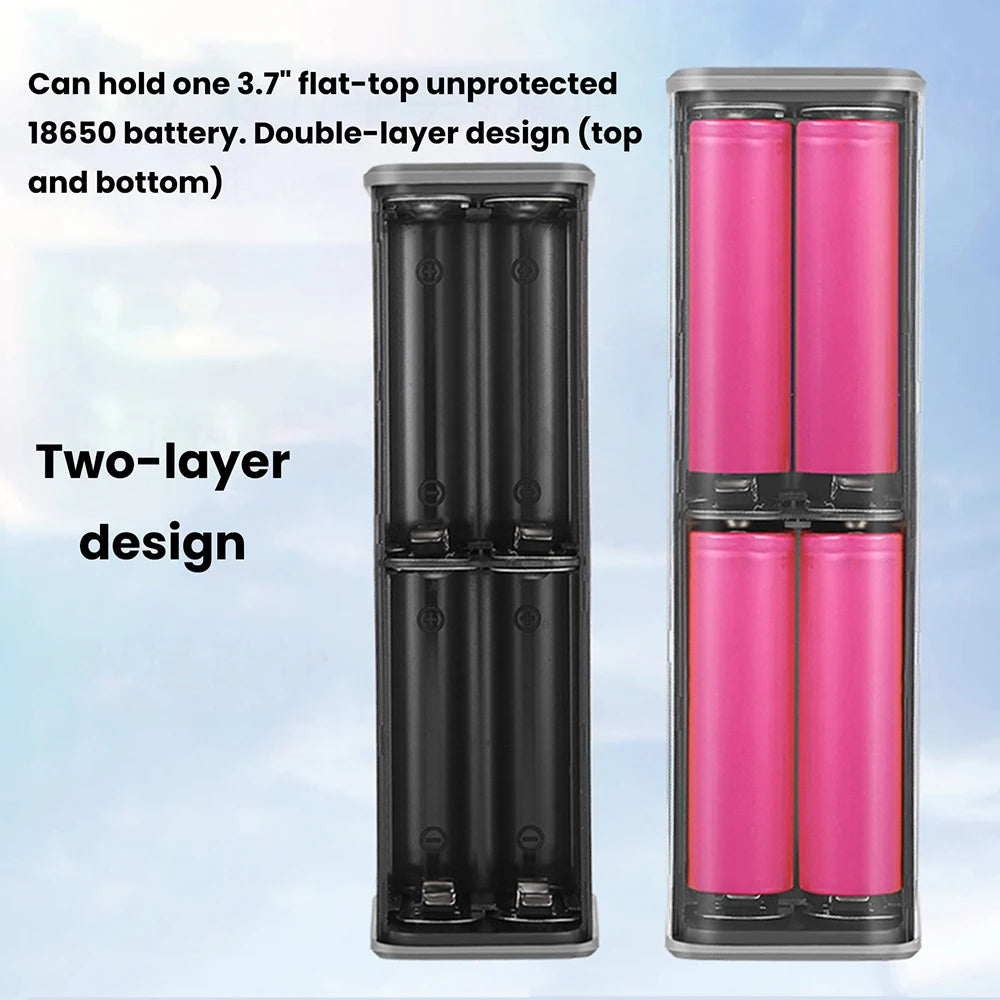

2. Solder-free 8-cell 18650 battery case for large-capacity energy storage, DIY-friendly and safe
3. Adjustable DC output voltage 3.3–24V, compatible with laptops and other electronics
4. Multi-protocol fast charging recognition for efficient and convenient charging

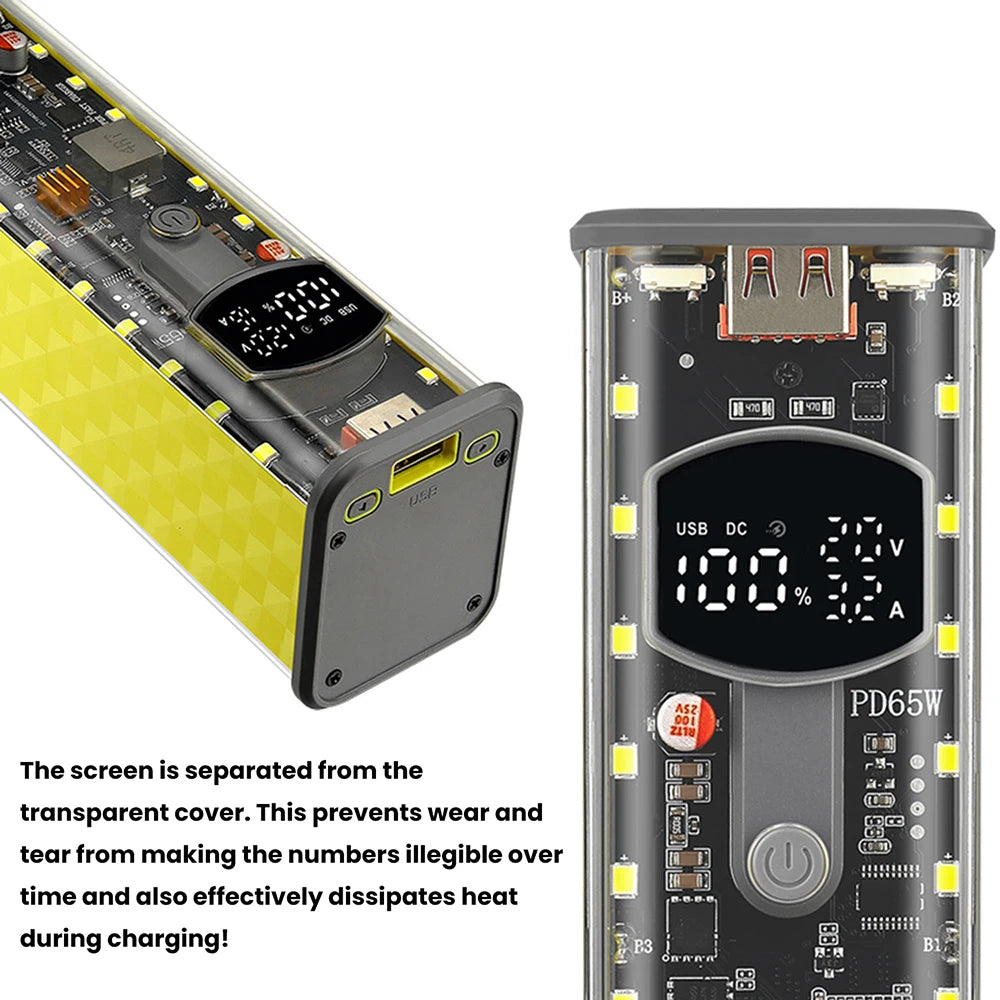

5. Multifunctional display with real-time voltage/current readout and high-brightness LED outdoor light

Parameter
Battery Case Solution: DC65W + PD65W + Super Flash Charge 60W + Super Fast Charge 40W + Flash Charge 30W + Fast Charge 25W + Standard Charge 15W (Most smartphone manufacturers limit non-original devices to 33W or below)
Output Power: 65W
Peak: 68W/3.2A (MAX)/3.3V-24V
Input Power: 65W MAX
Note: Requires high-performance charger and charging cable

DC Port Output Parameters:
DC1 Specification: 3.8*1.35 (Suitable for most air conditioners, fans)
DC2 Specification: 5.5*2.1 (Compatible with most DC power devices)
Output Voltage: 3.3-24V
Note: Only DC ports support voltage adjustment. Simultaneous multi-port output is limited to 5V.
Output Power: 65W (MAX)
Output Current: 3.2A (MAX)
Button Operation: Long-press power button to enter DC mode. Single-click left/right function buttons to adjust voltage range. Long-press left/right function buttons for continuous voltage adjustment.

USB Output & Supported Fast Charging Protocols
5V/3.2A (Standard Output); SCP: 40W; UFCS: 60W
SVOOC: 65W (Requires high-performance fast-charging cable)
VOOC 4.0: 30W (requires high-performance flash charging cable)
VOOC 1.0: 20W (requires flash charging cable); PE 1.1: 7.5W
PE 2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W
Most phones are limited to 33W; simultaneous multi-port output is restricted to standard 5V charging

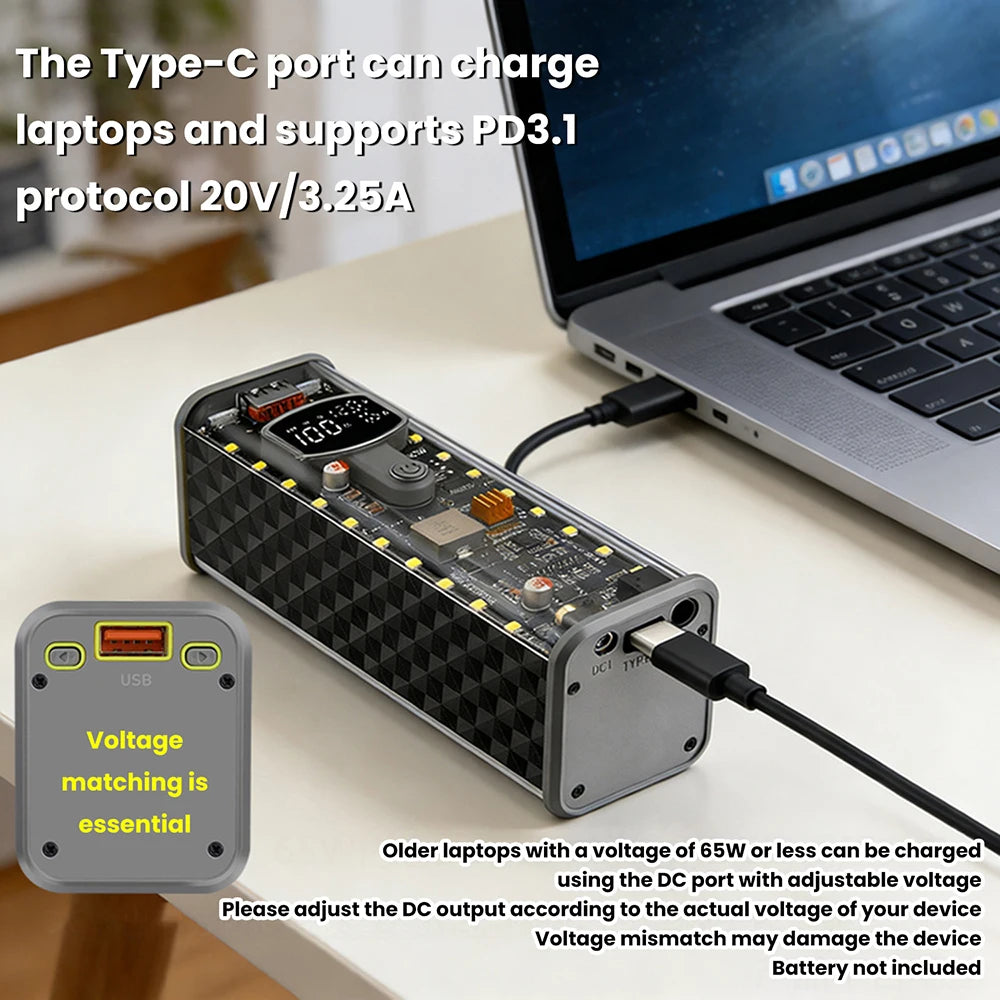

Type-C Output & Supported Fast Charging Protocols: (Supports laptop charging)
5V/3.2A (Standard Output); PD3.1: 65W; PPS: 60W;
SCP: 40W; UFCS: 60W;
SVOOC: 65W (requires high-performance flash charging cable)
VOOC 4.0: 30W (requires high-performance flash charging cable)
VOOC 1.0: 20W (requires flash charging cable); PE 1.1: 7.5W
PE2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;
Most phones are limited to 33W; multi-port output lacks fast charging

Type-C Input & Supported Fast Charging Protocols
5V/3.2A (Standard Input); PD3.1: 65W (MAX); SCP: 40W; UFCS: 60W;
SVOOC: 65W (requires high-performance flash charging cable);
VOOC 4.0: 30W (requires high-performance flash charging cable)
VOOC 1.0: 20W (requires flash charging cable); AFC: 18W; FCP: 18W;
Supports 5V simultaneous charging and discharging;
Note: If proprietary phone protocols are unsupported (USB lacks fast charging), use PD charging (TYPE-C output). PD public protocols offer more stable output and higher power delivery.

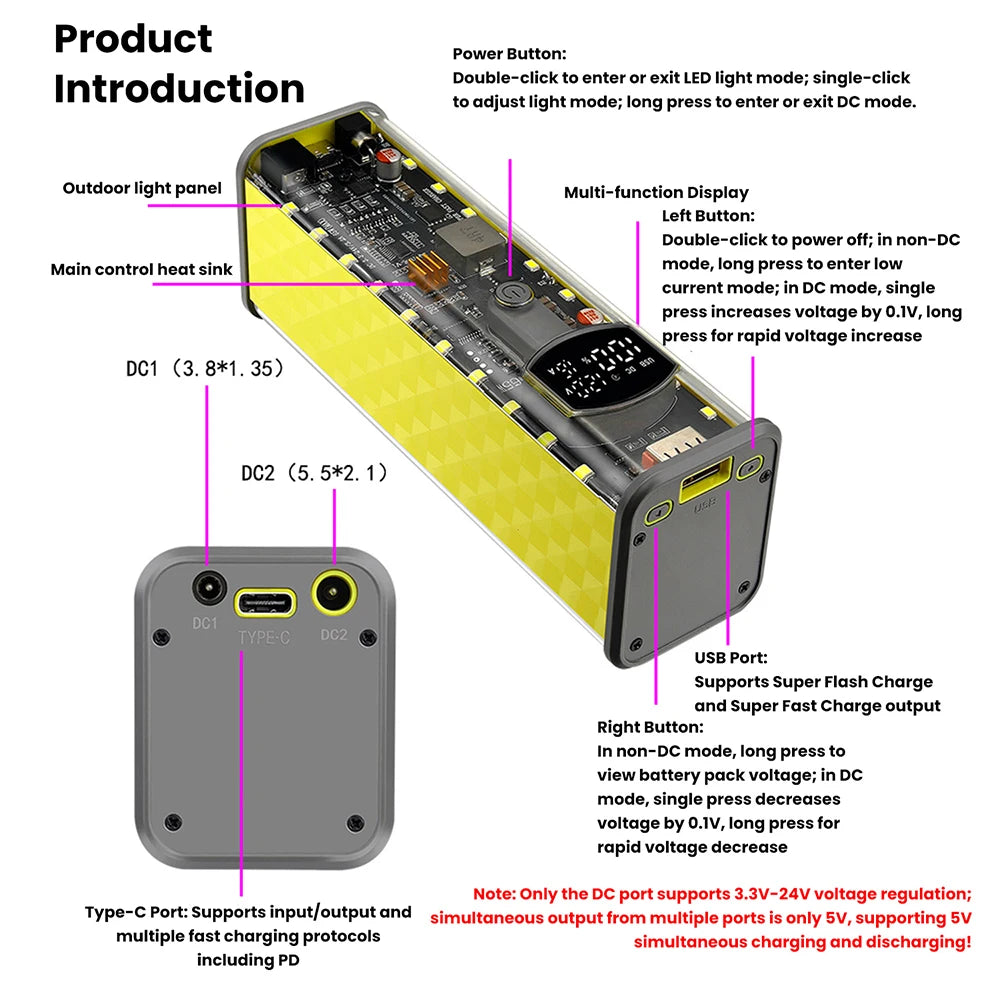

Button Functions
All buttons display battery level with a single press;
Power button: Double-click to enter/exit LED light mode; Single-click to adjust light mode; Long press to enter/exit DC mode;
Left Button: Double-click to power off. In non-DC mode, long press to enter low-current mode. In DC mode, single-click to step up voltage by 0.1V, long press for rapid stepping.
Right Button: In non-DC mode, long press to view battery pack voltage. In DC mode, single-click to step down voltage by 0.1V, long press for rapid stepping down.

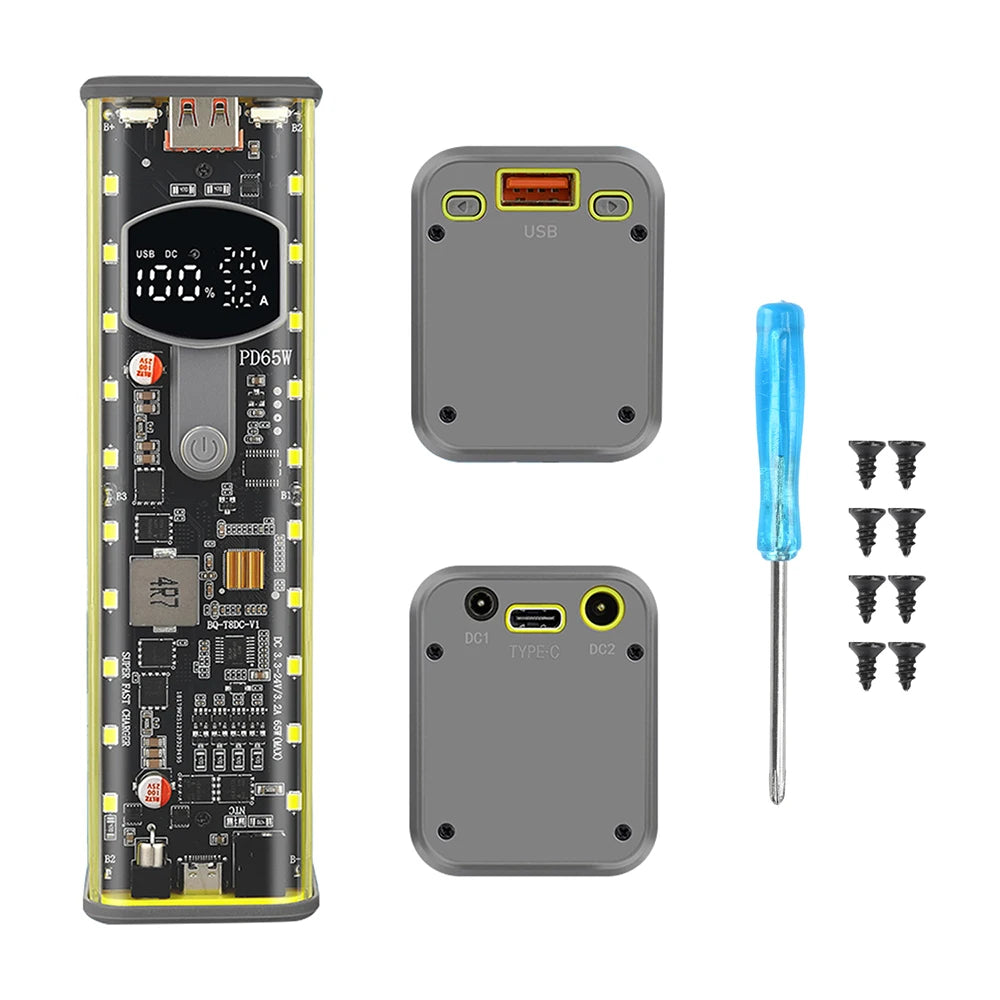

Package include

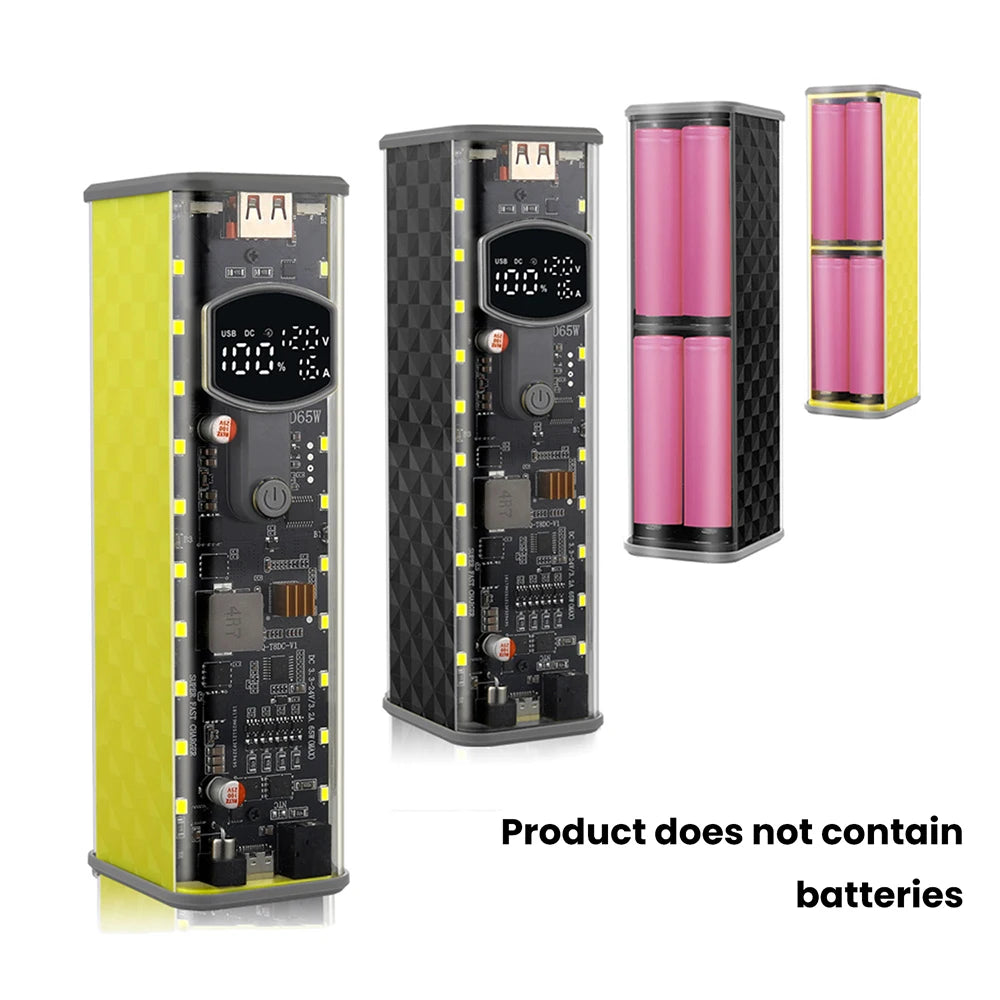

Power Bank Housing*1 (Battery not included)
Accessory Kit*1
